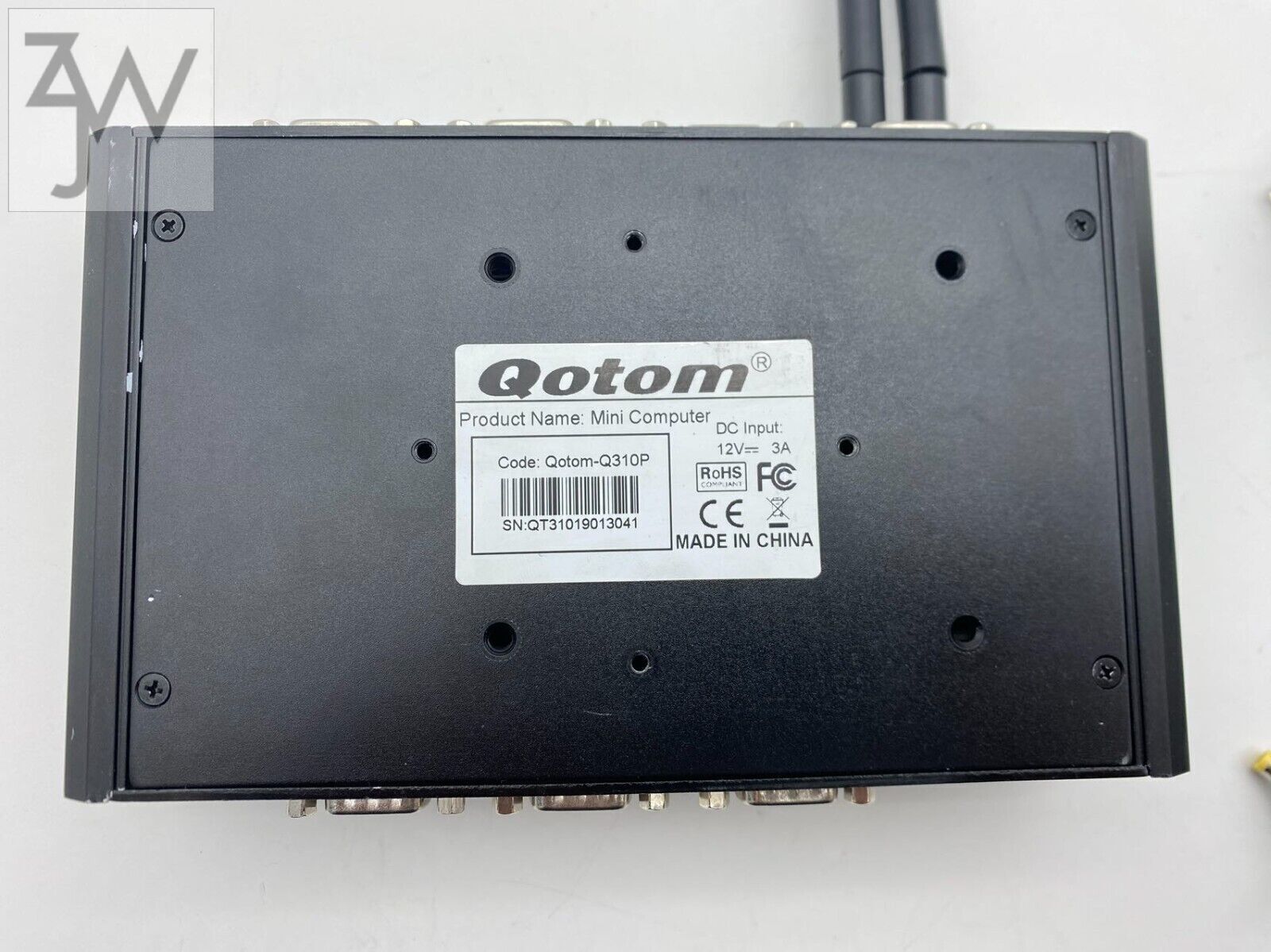

Qotom Q310p 3215u 4GB 32GB SSD Mini PC COM Serial Port IPC POS Computer RS-232
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | Computer |
| Type | Desktop |
| Most Suitable For | Casual Computing |

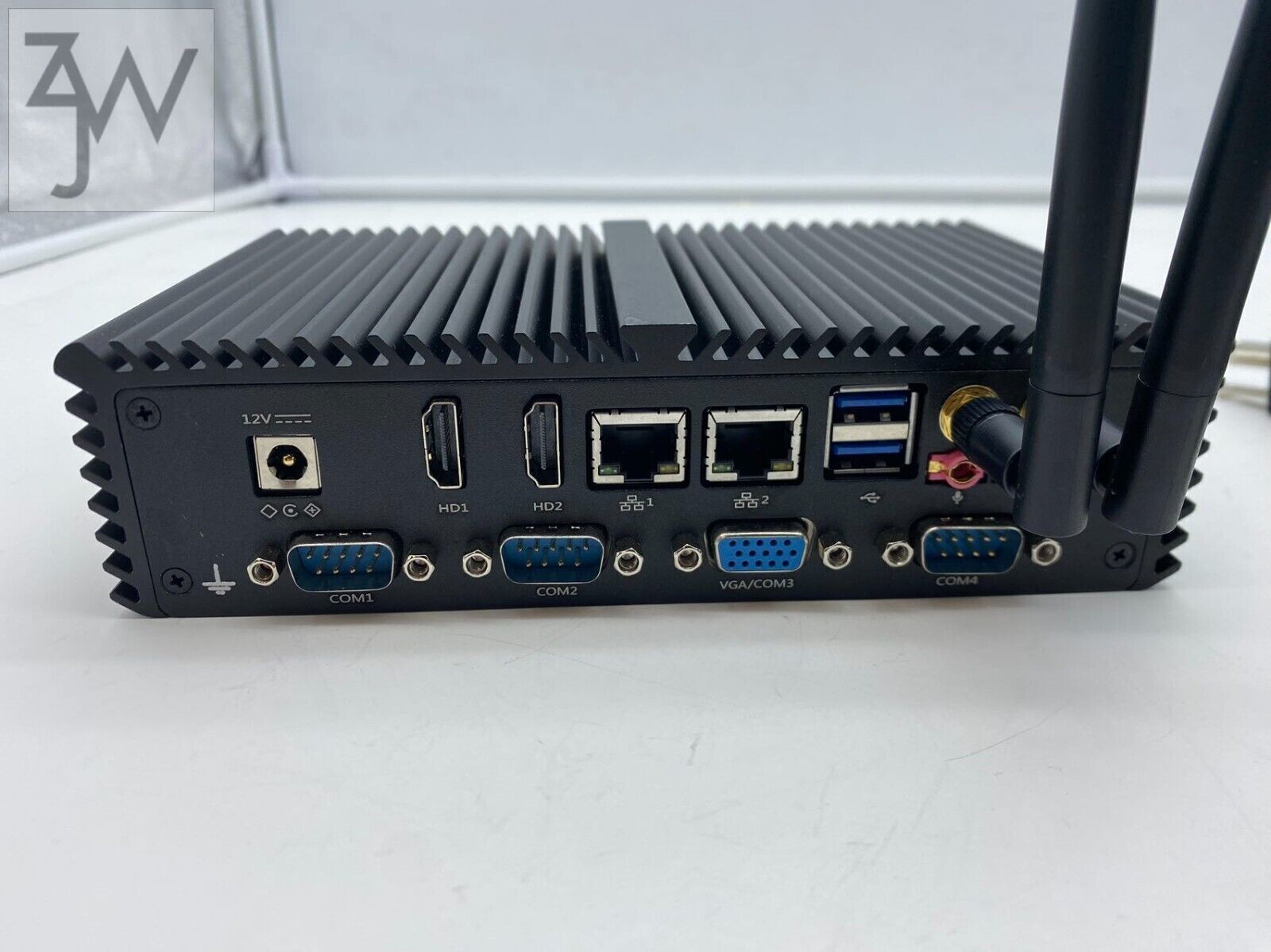

Qotom Q310p 3215u 4GB RAM 32GB SSD Mini PC COM Serial Port IPC POS Computer RS-232 NO OS,come with compatible adapter show in photo Basic Info. Model NO. Q310P-S050003 Memory Capacity 4GB CPU Intel Celeron HDD Capacity 32GB GPU Intel Memory Type DDR3l Use Commercial CPU Frequency 1.7GHz Brand Name Qotom Integrated Graphics Intel HD Graphics Main Port 2 HDMI+2 LAN+2 USB2.0+4 USB3.0+6 COM Memory Support DDR3l RAM Storage Support Msata SSD Hard Drive Support 2.5-Inch SATA HDD System Support Windows/Pfsense/Linux, etc. Support WiFi Yes Watch Dog Yes AES-Ni No Transport Package 261 X 220 X 80mm Specification 187 x 111 x 50mm Origin China HS Code 8471494000 Product DescriptionProduct Description Processor System Expansion CPU Intel Celeron Broadwell SOC Processor Default 3215U Dual Core Processor, 1.5GHz, 2M Cache mSATA 1xFull Size Mini-PCIe for SSD CPU TDP 15W Mini-PCIe 1 x Mini-PCIe for Option, 1, Full-length for 3G, Half-length for Wi-Fi Module by Default Memory 1xDDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz) SIM Card Slot 1 Chipset By CPU Automatically Boot Jumper 1 Graphics Intel® HD Graphics VGA 1x2.0 Pitch Header LAN Chipset 2xIntel I211-AT Gigabit LAN GPIO 1x2.0 Pitch Header Audio Realtek ALC662 HD Audio RS-485 COM2 can be set up as RS-232/RS-485 (Factory Setting) Watch Dog Yes DC-in Header Front I/O Power Requirement Power Button 1 Power Adapter 12V3A LED 1xPower LED, 1 x HDD LED DC Jack 5.5mm, 2.5mm USB 2xUSB 3.0, 2xUSB 2.0 Serial Port 2 x RS-232 (COM5, COM6) Environmental Operating Temp 0°C~50° C Rear I/O Non-Operating Temp -20°C~80° C Power 1xDC Jack Humidity 10%~90% Video Output 2xHDMI, 1 x VGA (Optional) USB 2xUSB 3.0 Mechanical LAN 2xRJ45 Port for Gigabit LAN Material Aluminum Audio 1 (Mic-in, Line-out) Dimension 187x111x50mm Serial Port 4 x RS-232 (COM1, COM2, COM3, COM4) Weight 1.1kg Storage Mounting VESA Mounting Bracket Type 1x2.5-inch HDD/SSD 1xMini-PCIe for mSATA SSD Packaging Dimension 261x218x75mm Kensington Lock Support OS Support Cooling Mode Fanless Design OS Windows 7, Windows 8, Windows 10, Linux Packing Included 1 x Mini PC 1 x Power Supply 2 x Antennas Listed with ExportYourStore.com Powered by ExportYourStore.com Listed with ExportYourStore.com Powered by ExportYourStore.com
